ERAYFOIL-MODEL 3 (Dual-Antenna Version)
Product Overview
Building upon the Model 2 (Single-Antenna Version), the ERAYFOIL-MODEL 3 has been significantly upgraded to a dual-antenna system. It features built-in antennas for reliable signal reception. In environments with weak signal, an external antenna can be connected to enhance signal strength, and this external antenna is replaceable.
Key Specifications:
Exceptional Power: Maximum thrust of 43kg, with a rated thrust of 34kg.
Advanced Battery System: Choose between a high-capacity 444Wh battery or a compact 159Wh battery. Both are equipped with Samsung 50S cells and an integrated BMS (Battery Management System). Monitor your battery status in real-time via the dedicated mobile APP.
High-Performance Propulsion: Features an aluminum 2-blade propeller. The motor utilizes a Quick-Lock Mount design, ensuring seamless compatibility with a wide range of masts.
| Component | Details | |
| Main box | ||
| Large Box | Small Box | |
| Size | 500mm*125mm*53mm | 365mm*125mm*53mm |
| Weight | 1.5KG | 1.3KG |
| Note: The large and small boxes are easily interchangeable. Only one side of the lid varies in length, while the end containing the electronic components is shared. | ||
| Antenna Type | Dual-antenna | Single-antenna |

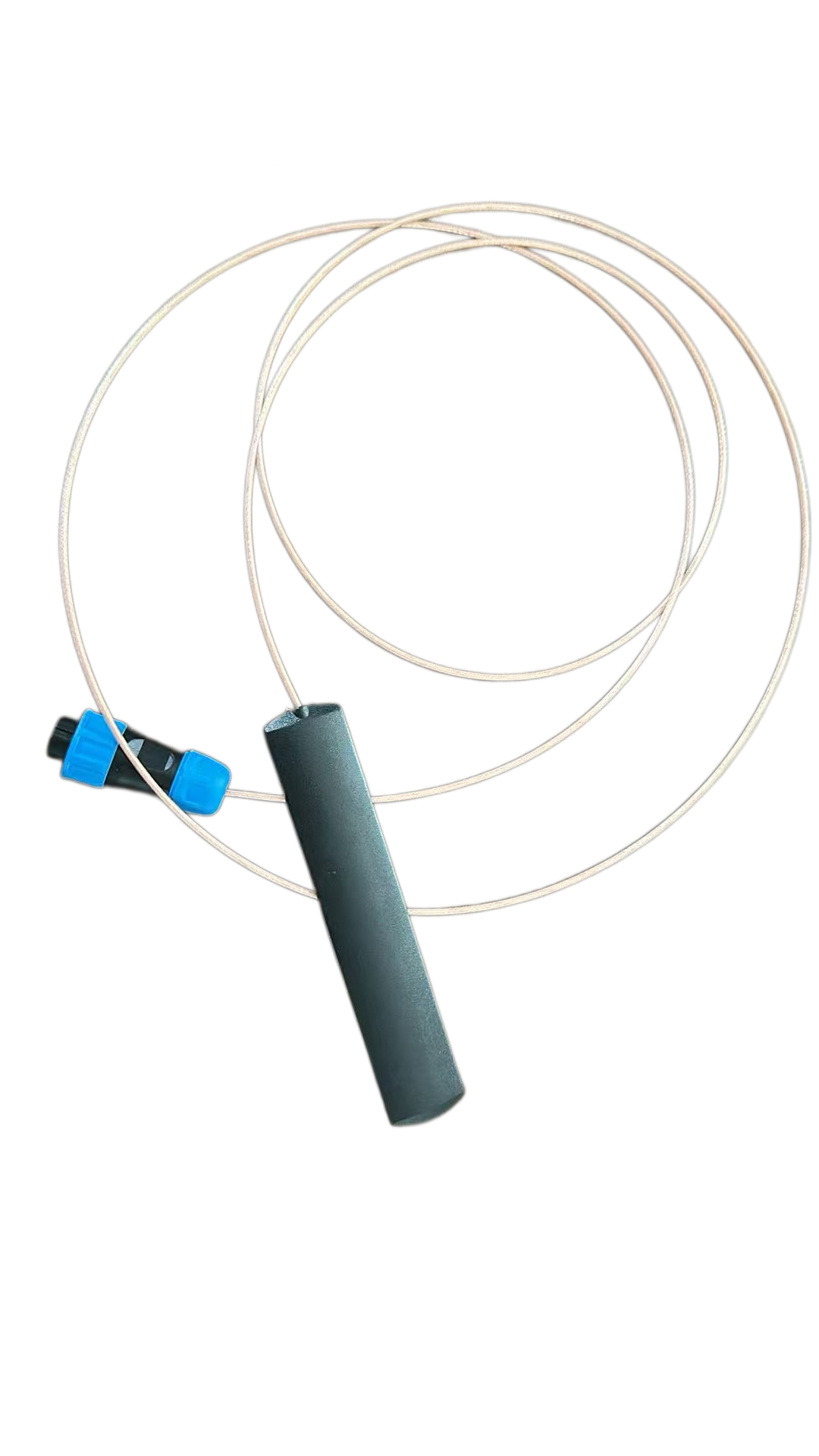

| The dual-antenna version includes a built-in antenna and a detachable external antenna. | The single-antenna version comes with one external antenna. | |

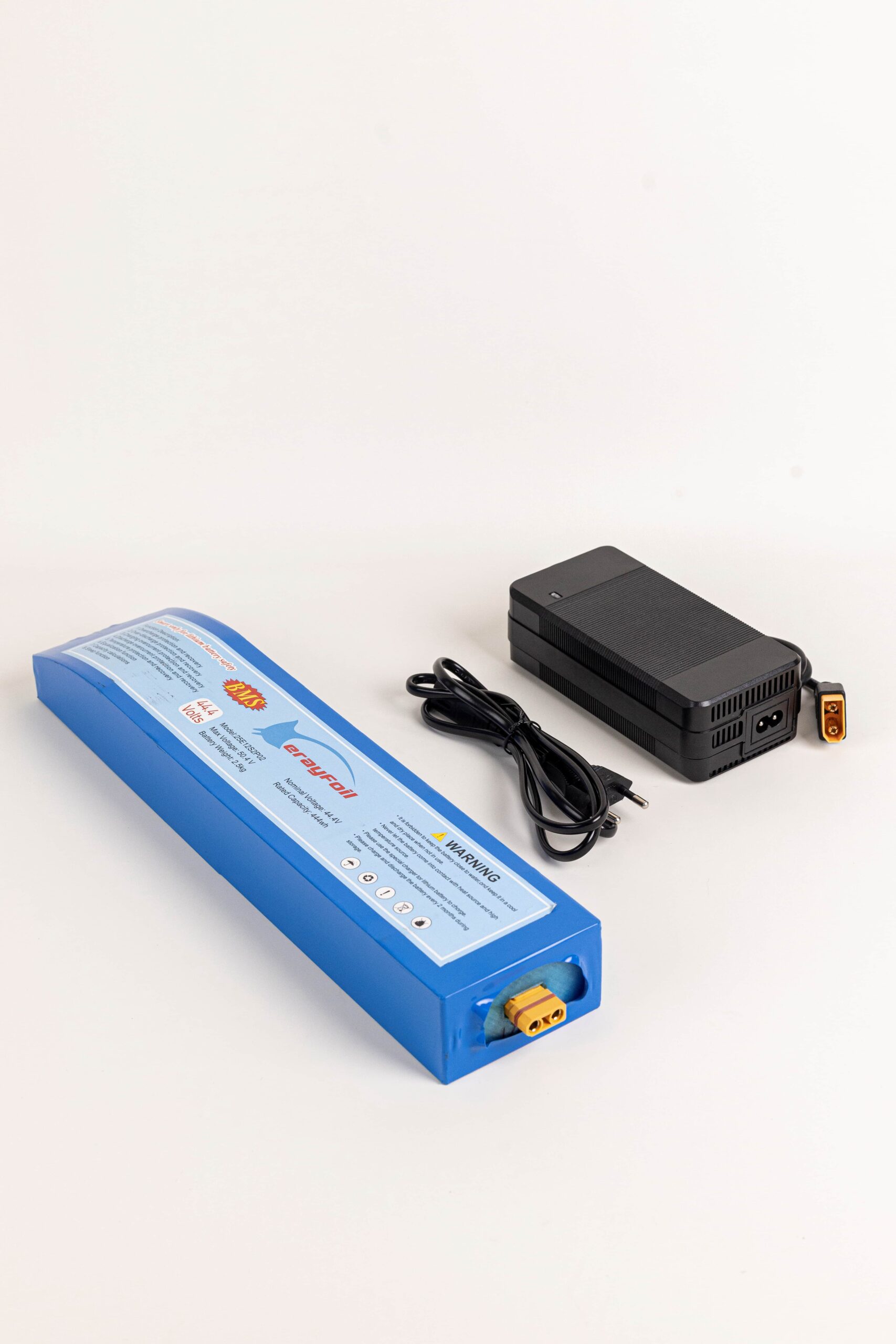

| Battery | ||
| Large Battery | Small Battery | |
| Size | 353mm*79mm*44mm | 250mm*79mm*44mm |
| Weight | 2.5KG | 1.5KG |
| Rated Capacity | 444wh | 159wh |
| Cells | Samsung 50S (BMS) | |
| Battery Specifications | Nominal Voltage: 44.4V | |
| Max Voltage: 50.4V | ||
| Motor | ||
| Specifications | MP6384 /80KV Max Power: 4000W instant | |
| Rated Power: 2000W Max, Input Voltage: 48V | ||
| Max Thrust: 43Kg Sensor: 316 | ||
| Weight: 1.5KG | ||
| Cable Length | Default length is 35cm. | |
| It can be customized according to customer requirement, ranging from 10cm to 70cm. | ||
| Waterproof | IP68 | |
| Remote Controller | ||
| Wireless charging, IP68 waterproof, 50-speed control | ||
